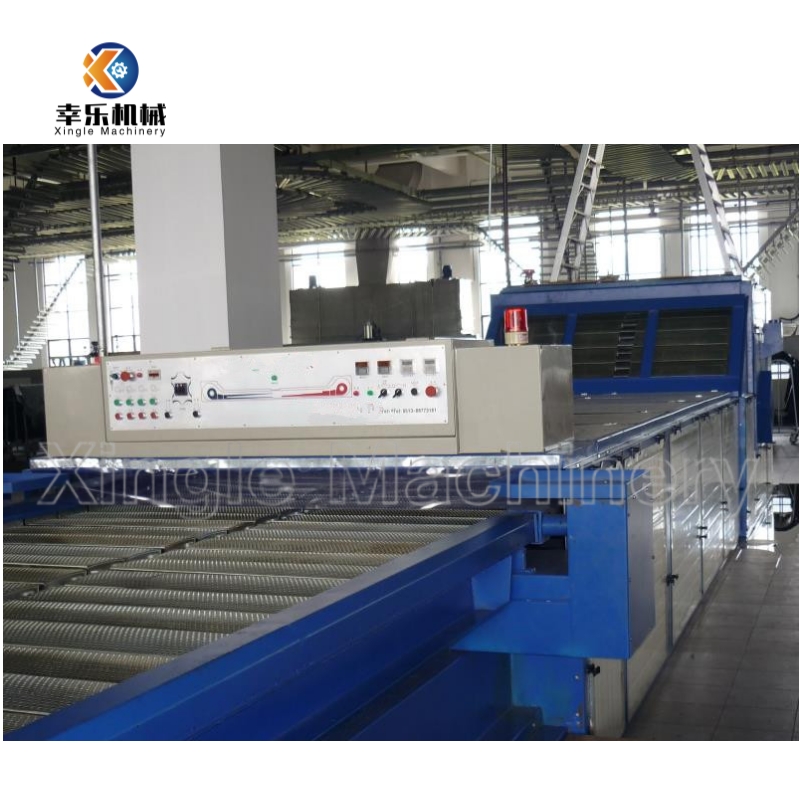

Horizontal type togging dryer machine

Product description:

The horizontal type togging dryer machine is an indispensable key equipment in the leather processing industry. It adopts a horizontal structure design and is designed to provide efficient and uniform drying processing for various types of leather. Suitable for use on sheepskins and half-sheet cowhide hides of all thicknesses and widths, all providing excellent drying properties. By using this machine, manufacturers can significantly improve product quality, shorten production cycles, and reduce manufacturing costs.

Product advantages：

1. Both ends of the machine use centrifugal fans to supply air, and the internal upper and lower air ducts are integrated. Compared with the air supply models on both sides, the air volume is larger and more uniform, and the shaping effect is fast; the electric and oil heating temperatures can reach about 70°C.

2. Electric stretching, stretching range 0~120mm, equipped with leather stretch display, easy and intuitive operation;

3. The curved plate mesh surface has better shaping effect;

4. The track structure is "cross-shaped" and has good stability;

5. The transmission chain uses special heavy-duty wide series oil-impregnated bearings. Compared with ordinary models, the bearings are impact-resistant, have greater load-bearing capacity and have longer service life;

6. The transmission structure is four-wheel drive, with up and down transmission. Compared with the two-wheel transmission model, the transmission is more stable and reliable, extending the service life of the chain;

7. The temperature and time of the drying chamber are adjustable, equipped with a display and electronic skin counting;

8. It is easy to operate and does not require a high workbench, which saves the operator the hard work of moving the skin up and down and improves work efficiency.

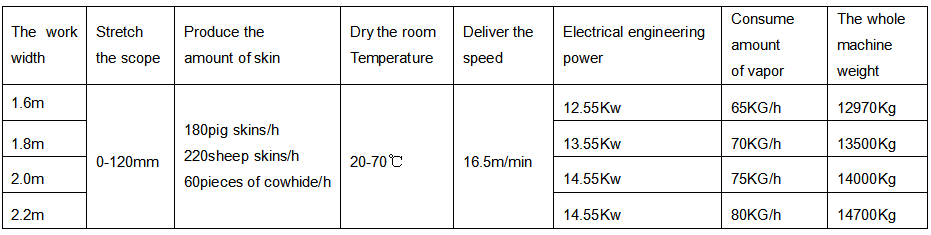

Product parameters：

Product application：

It has a wide range of applications in the leather production industry, mainly including the following aspects

1. Leather pre-drying: In the early stages of leather processing, excess moisture on the surface of wet leather needs to be removed for further tanning and dyeing processes. The horizontal type togging dryer machine can effectively pre-dry wet leather to ensure the flatness of the leather and the quality of subsequent processing.

2. Drying of dyed leather: After the leather is dyed, it needs to be dried using a horizontal type togging dryer machine to fix the color and remove residual moisture. This process is critical to both the color fastness and the feel of the leather.

3. Coating leather treatment: Before drying and solidifying the coating or protective layer applied on the leather surface, a horizontal type togging dryer machine needs to be used for uniform heating to promote rapid drying and hardening of the coating.

4. Finished leather shaping: In the final stage of leather production, the finished leather may need to be finalized by a horizontal type togging dryer machine to eliminate any wrinkles or deformation produced during processing and ensure the flatness and dimensional stability of the leather. .

5. Special leather processing: For some leather with special requirements, such as car seat leather, furniture leather, etc., horizontal type togging dryer machine can provide customized drying solutions to meet the specific needs of different materials and uses.
